Reduced Complexity
Shows Precision
Explicit Function
Featuring innovative design and user-friendly ergonomics, this device redefines the standards for Android SmartPOS terminals.

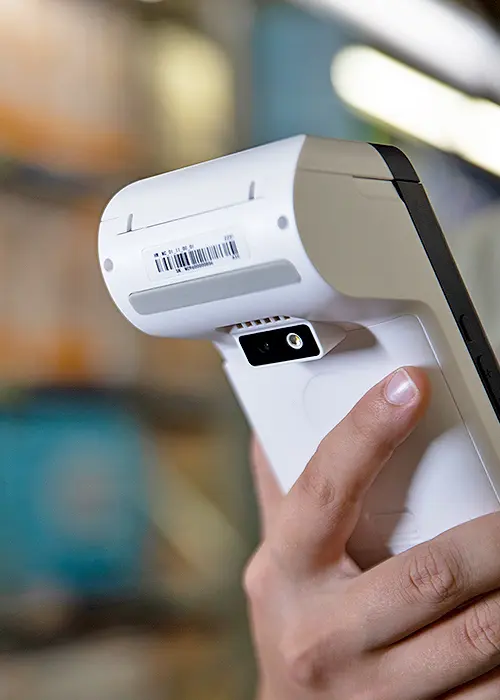

Fast and secure data scanning in any location
using Bluetooth 2.1/5.0, WiFi or 4G
Standard 3.6V/5200mAh
Optional up to 3.6V/6600 mAh
for continuous 24/7 usage.

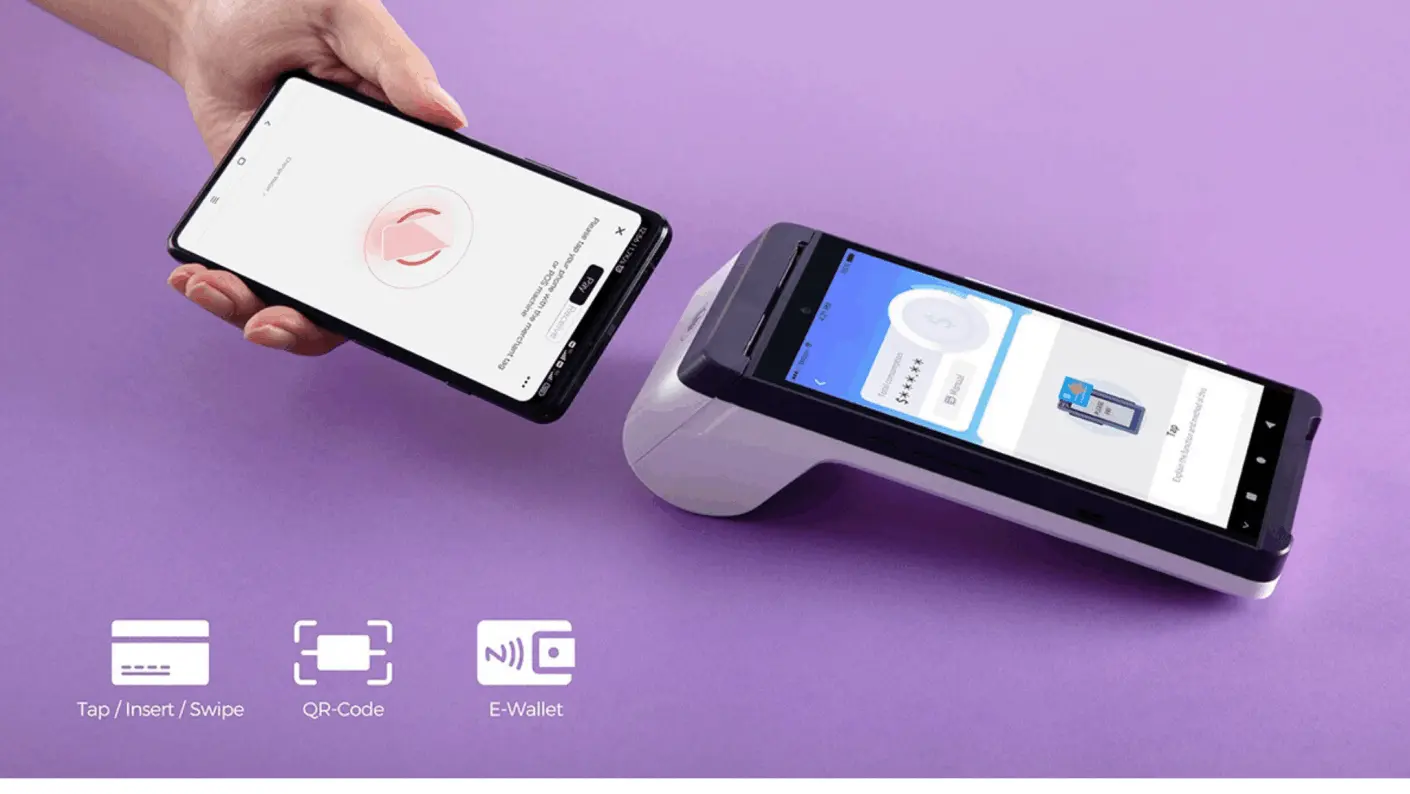

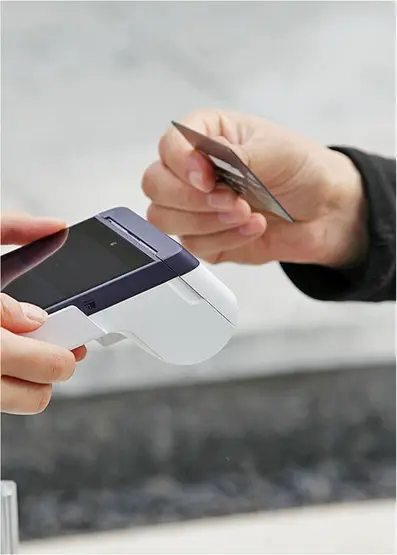

Equipped to process chip and PIN, contactless cards, NFC, and QR-code-based wallets,
this terminal adapts to every payment method in the post-pandemic world.
| Category | Specification |
|---|---|
| OS | Android 12 |
| Application Processor | Cortex Quad-core A53, 2.0GHz |
| Memory | 2GB RAM, 16GB FLASH 3GB RAM, 32GB FLASH (Optional) 4GB RAM, 64GB FLASH (Optional) MicroSD card (Optional, up to 256GB) |
| Display | 5.99-inch TFT full color LCD display, resolution of 1440 x 720, with adjustable backlight Capacitive multi-touch screen, support electronic signature |
| Wireless Communication | 4G / 3G / 2G, WIFI (802.11 a/b/g/n/ac)2.4G&5G, Bluetooth 2.1/5.0 |

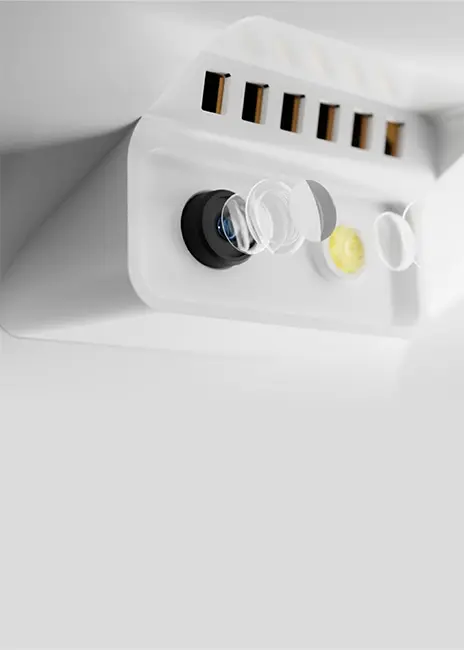

| Camera | 0.3MP/ 2MP(Optional) front camera, support 1D/2D code payment. 5MP/ 8MP(Optional) autofocus rear camera with flashlight, support 1D/2D code payment |
| Audio | 1 x Speaker, 1 x Microphone, support audio recording and media play |
| Printer | High-speed thermal printer, 80mm/s. Paper roll diameter: 40mm Paper width: 58mm |
| Battery | Li-ion battery, 7.2V/2600mAh/18.7Wh (Equal to 3.6V/5200mAh) (Optional) Li-ion battery, 7.2V/3300mAh/23.7Wh (Equal to 3.6V/6600mAh) |
| I/O Expansion | Serial Port: 2, DB9 x 1 + RJ50 x 1 (5V/12V support on all COM ports) Standard USB Port: 5, USB 3.0 x 2 + USB 2.0 x 3 LAN Port: 10/100/1000 Mb x 2 Display Port: Proprietary connector x1 for 2nd display |
| Audio | Internal 2W speaker x 1 |
| Power Supply | Input: 100-240V AC 50/60Hz Output: 5.0V DC, 2.0A |
| Peripheral Ports | 1 x Type C port |
| Card Slots | 2 x SIM, 2 x SAM |
| Dimensions | 201mm (L) * 79.8mm (W) * 62mm (H) 464g including battery |
